Toyota Corolla. Turning on the high beam (®P.581) headlights

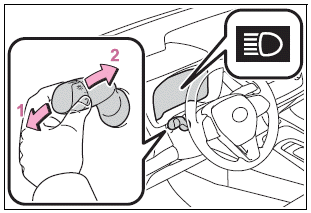

1 With the headlights on, push the lever away from you to turn on the high beams.

Pull the lever toward you to the center position to turn the high beams off.

2 Pull the lever toward you and release it to flash the high beams once.

You can flash the high beams with the headlights on or off.

AFS (Adaptive Front-lighting System)

AFS (Adaptive Front-lighting System) secures excellent visibility at intersections and on curves by automatically adjusting the direction of the light axis of the headlights according to vehicle speed and the degree of the tire’s angle as controlled by steering input.

AFS operates at speeds of approximately 6 mph (10 km/h) or higher.

■Customization

Some functions can be customized.
