Toyota Corolla: Engine compartment / Components

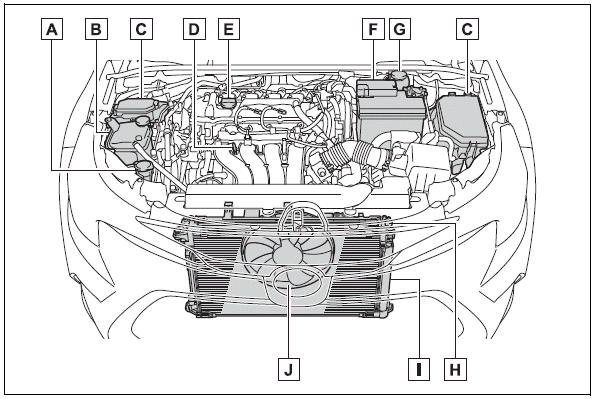

► 1.8 L 4-cylinder (2ZR-FAE) engine

A - Washer fluid tank
B - Engine coolant reservoir
C - Fuse boxes
D - Engine oil level dipstick
E - Engine oil filler cap
F - Battery
G - Brake fluid reservoir
H - Radiator
I - Condenser
J - Electric cooling fan
► 2.0 L 4-cylinder (M20A-FKS) engine

A - Washer fluid tank
B - Engine coolant reservoir
C - Fuse boxes
D - Engine oil filler cap
E - Engine oil level dipstick
F - Battery
G - Brake fluid reservoir
H - Radiator
I - Condenser
J - Electric cooling fan
With the engine at operating temperature and turned off, check the oil level
on the dipstick.
■ Checking the engine oil
1 Park the vehicle on level ground...
