Toyota Corolla: Multi-information display / Content of driving information

■ Display items

  • Speedometer display/Driving range (4.2-inch display)
  • Fuel economy
  • Eco Driving Indicator/Driving range (if equipped)

■ Speedometer display/Driving range (4.2-inch display)

  • Speedometer display
  • Driving range

Displays driving range with remaining fuel. Use the displayed values as a reference only.

This distance is computed based on your average fuel consumption. As a result, the actual distance that can be driven may differ from that displayed.

When only a small amount of fuel is added to the tank, the display may not be updated.

When refueling, turn the engine switch off. If the vehicle is refueled without turning the engine switch off, the display may not be updated.

■ Fuel economy

Use the displayed values as a reference only.

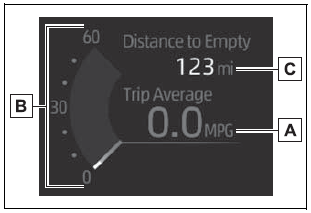

Toyota Corolla. Content of driving information

A - Average fuel economy (after reset)

To reset the average fuel economy display, press and hold the meter control switch.

B - Current fuel consumption

Displays instantaneous current fuel consumption.

C - Driving range

Displays driving range with remaining fuel.

This distance is computed based on your average fuel consumption. As a result, the actual distance that can be driven may differ from that displayed.

When only a small amount of fuel is added to the tank, the display may not be updated.

When refueling, turn the engine switch off. If the vehicle is refueled without turning the engine switch off, the display may not be updated.

The average fuel economy display can be changed in Toyota Corolla. Content of driving information.

  • Average fuel economy (after start)

Displays the average fuel consumption since engine start.

  • Average fuel economy (after refuel)

Displays the average fuel consumption since the vehicle was refueled.

■ Eco Driving Indicator/Driving range (if equipped)

  • Eco Driving Indicator

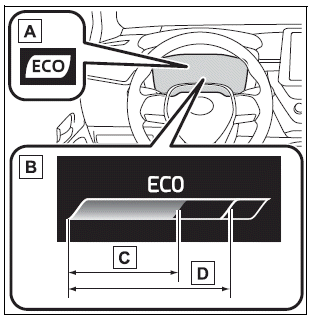

Toyota Corolla. Content of driving information

A - Eco Driving Indicator Light

During Eco-friendly acceleration (Eco driving), the Eco Driving Indicator Light will turn on. When the acceleration exceeds the Zone of Eco driving, or when the vehicle is stopped, the light turns off.

B - Eco Driving Indicator Zone Display

Suggests the Zone of Eco driving with current Eco driving ratio based on acceleration.

C - Eco driving ratio based on acceleration

If the acceleration exceeds the Zone of Eco driving, the right side of the Eco Driving Indicator Zone Display will illuminate.

At this time, the Eco Driving Indicator Light will turn off.

D - Zone of Eco driving

  • Driving range

Displays driving range with remaining fuel. Use the displayed values as a reference only.

This distance is computed based on your average fuel consumption. As a result, the actual distance that can be driven may differ from that displayed.

When only a small amount of fuel is added to the tank, the display may not be updated.

When refueling, turn the engine switch off. If the vehicle is refueled without turning the engine switch off, the display may not be updated.

■Eco Driving Indicator

Eco Driving Indicator will not operate under the following conditions:

  • The shift lever is in any position other than D.
  • A paddle shift switch is operated. (If equipped)
  • The driving mode is set to sport mode. (If equipped)
  • The vehicle speed is approximately 80 mph (130 km/h) or higher.

    Changing the meter display

    T..

    Driving support system information display

    ■ Driving support system information Select to display the operational status of the following systems: LTA (Lane Tracing Assist) (if equipped) (®P...
