Toyota Corolla: Instrument cluster / Multi-information display

Display and menu icons

■ Display

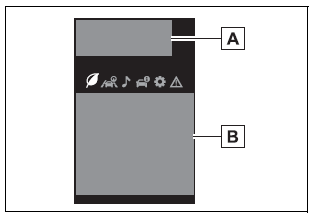

► 4.2-inch display

Toyota Corolla. Multi-information display

A - Driving support system status display area

Displays an image when the following systems are operating and a menu icon other than Toyota Corolla. Multi-information display is selected:

  • LTA (Lane Tracing Assist) (if equipped)
  • LDA (Lane Departure Alert with steering control) (if equipped)
  • Dynamic radar cruise control (if equipped)
  • Dynamic radar cruise control with full-speed range (if equipped)
  • RSA (Road Sign Assist) (if equipped)

B - Content display area

By selecting menu icons on the multi-information display, a variety of driving-related information can be displayed. The multi-information display can also be used to change display settings and other vehicle settings.

Warning or advice pop-up displays are also displayed in certain situations.

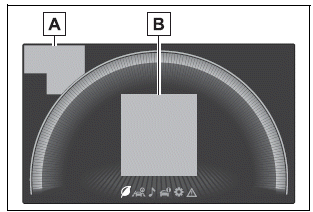

► 7-inch display

Toyota Corolla. Multi-information display

A - Driving support system status display area

Displays an image when the following systems are operating and a menu icon other than Toyota Corolla. Multi-information display is selected:

  • LTA (Lane Tracing Assist)
  • Dynamic radar cruise control with full-speed range
  • RSA (Road Sign Assist) (if equipped)

B - Content display area

By selecting menu icons on the multi-information display, a variety of driving-related information can be displayed. The multi-information display can also be used to change display settings and other vehicle settings.

Warning or advice pop-up displays are also displayed in certain situations.

■ Menu icons

The menu icons will be displayed by pressing the < or > meter control switch.

Toyota Corolla. Multi-information displayDriving information display

Toyota Corolla. Multi-information displayDriving support system information display

Toyota Corolla. Multi-information displayAudio system-linked display

Toyota Corolla. Multi-information displayVehicle information display

Toyota Corolla. Multi-information displaySettings display

Toyota Corolla. Multi-information displayWarning message display

■Liquid crystal display

Small spots or light spots may appear on the display. This phenomenon is characteristic of liquid crystal displays, and there is no problem continuing to use the display.

WARNING

■Caution for use while driving

  • When operating the multi-information display while driving, pay extra attention to the safety of the area around the vehicle.
  • Do not look continuously at the multi-information display while driving as you may fail to see pedestrians, objects on the road, etc. ahead of the vehicle.

■The information display at low temperatures
