Toyota Corolla: Before driving / Outside rear view mirrors

The rear view mirror’s position can be adjusted to enable sufficient confirmation of the rear view.

WARNING

■Important points while driving

Observe the following precautions while driving.

Failure to do so may result in loss of control of the vehicle and cause an accident, resulting in death or serious injury.

  • Do not adjust the mirrors while driving.
  • Do not drive with the mirrors folded.
  • Both the driver and passenger side mirrors must be extended and properly adjusted before driving.

Adjustment procedure

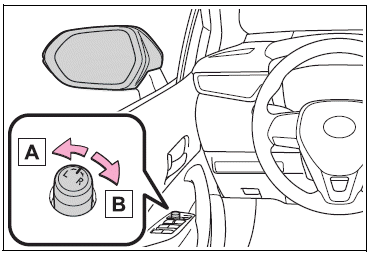

1 To select a mirror to adjust, turn the switch.

Toyota Corolla. Outside rear view mirrors

A - Left

B - Right

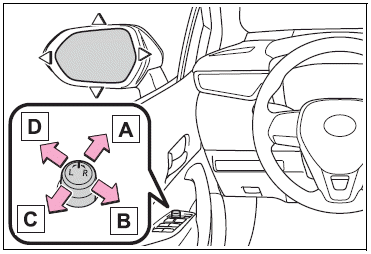

2 To adjust the mirror, operate the switch.

Toyota Corolla. Outside rear view mirrors

A - Up<> B - Right<> C - Down<> D - Left

■Mirror angle can be adjusted when

The engine switch is in ACC or ON.

■When the mirrors are fogged up (vehicles with outside rear view mirror defoggers)

The outside rear view mirrors can be cleared using the mirror defoggers. Turn on the rear window defogger to turn on the outside rear view mirror defoggers. (®P.418, 422)

WARNING

■When the mirror defoggers are operating (vehicles with outside rear view mirror defoggers)

Do not touch the rear view mirror surfaces, as they can become very hot and burn you.

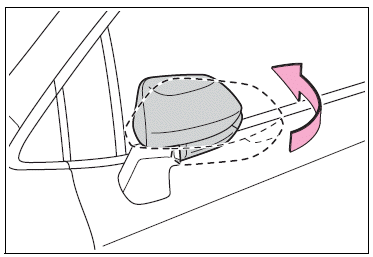

Folding the mirrors

Push the mirror back in the direction of the vehicle’s rear.

Toyota Corolla. Outside rear view mirrors

WARNING

■When a mirror is moving

To avoid personal injury and mirror malfunction, be careful not to get your hand caught by the moving mirror.

    Inside rear view mirror

    The rear view mirror’s position can be adjusted to enable sufficient confirmation of the rear view. Adjusting the height of rear view mirror The height of the rear view mirror can be adjusted to suit your driving posture...

    Power windows

    Opening and closing the power windows The power windows can be opened and closed using the switches. Operating the switch moves the windows as follows: 1 Closing<> 2 One-touch closing*<> 3 Opening<> 4 One-touch opening* ■The power windows can be operated when The engine switch is in ON...
