Toyota Corolla: Child restraint systems / Using a top tether anchorage

■ Top tether anchorages

Top tether anchorages are provided for each rear seat.

Use top tether anchorages when fixing the top strap.

► Seats with an adjustable type head restraint

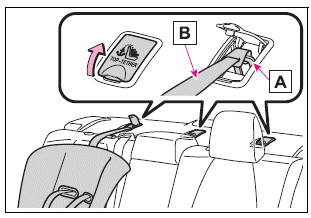

Toyota Corolla. Using a top tether anchorage

A - Top tether anchorages<> B - Top strap

► Seats with an integrated type head restraint

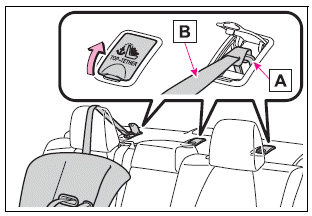

Toyota Corolla. Using a top tether anchorage

A - Top tether anchorages<> B - Top strap

■ Fixing the top strap to the top tether anchorages

Install the child restraint system in accordance to the operation manual enclosed with the child restraint system.

► Rear outboard seats

1 Adjust the head restraint to the upmost position.

If the head restraint interferes with your child restraint system, and the head restraint can be removed, remove the head restraint.

Otherwise, put the head restraint in the upper most position.

2 Open the top tether anchorage cover, latch the hook onto the top tether anchorage and tighten the top strap. Make sure the top strap is securely latched. (®P.63)

When installing the child restraint system with the head restraint being raised, be sure to have the top strap pass underneath the head restraint.

► Seats with an adjustable type head restraint

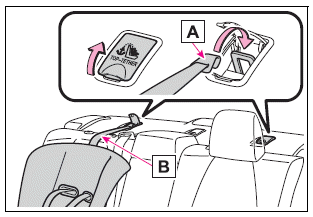

Toyota Corolla. Using a top tether anchorage

A - Hook<> B - Top strap

► Seats with an integrated type head restraint

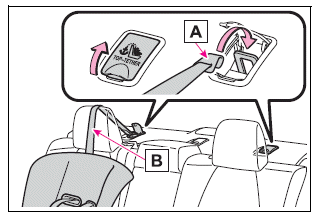

Toyota Corolla. Using a top tether anchorage

A - Hook<> B - Top strap

► Rear center seat

Latch the hook onto the top tether anchorage and tighten the top strap.

Make sure the top strap is securely latched.

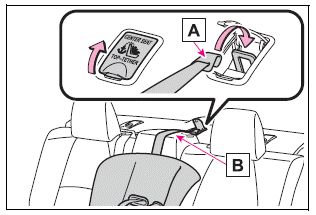

Toyota Corolla. Using a top tether anchorage

A - Hook<> B - Top strap

WARNING

■When installing a child restraint system

Observe the following precautions. Failure to do so may result in death or serious injury.

  • Firmly attach the top strap and make sure that the belt is not twisted.
  • Do not attach the top strap to anything other than the top tether anchorages.
  • After securing a child restraint system, never adjust the seat.
  • Follow all installation instructions provided by the child restraint system manufacturer.
  • Outboard rear seats: When installing the child restraint system with the head restraint being raised, after the head restraint has been raised and then the top tether anchorage has been fixed, do not lower the head restraint.

NOTICE

■Top tether anchorages

When not in use, make certain to close the lid. If it remains open, the lid may be damaged.
