Toyota Corolla: Dynamic radar cruise control / Driving in vehicle-to-vehicle distance control mode

This mode employs a radar to detect the presence of vehicles up to approximately 328 ft. (100 m) ahead, determines the current vehicle- to-vehicle following distance, and operates to maintain a suitable following distance from the vehicle ahead. The desired vehicle- to-vehicle distance can also be set by operating the vehicle- to-vehicle distance switch.

When driving on downhill slopes, the vehicle-to-vehicle distance may become shorter.

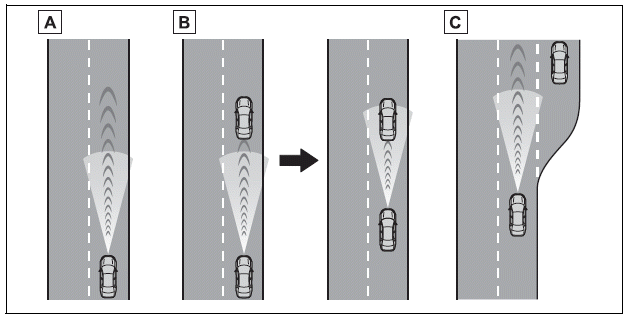

Toyota Corolla. Driving in vehicle-to-vehicle distance control mode

A - Example of constant speed cruising When there are no vehicles ahead

The vehicle travels at the speed set by the driver.

B - Example of deceleration cruising and follow-up cruising When a preceding vehicle driving slower than the set speed appears

When a vehicle is detected running ahead of you, the system automatically decelerates your vehicle. When a greater reduction in vehicle speed is necessary, the system applies the brakes (the stop lights will come on at this time). The system will respond to changes in the speed of the vehicle ahead in order to maintain the vehicle-to-vehicle distance set by the driver. Approach warning warns you when the system cannot decelerate sufficiently to prevent your vehicle from closing in on the vehicle ahead.

When the turn signal lever is operated and your vehicle moves to an overtaking lane while driving at 50 mph (80 km/h) or more, the vehicle will accelerate to help to overtake a passing vehicle.

The system’s identification of what is an overtaking lane may be determined solely based on the location of the steering wheel in the vehicle (left side driver position versus right side driver position.) If the vehicle is driven to a region where the overtaking lane is on a different side from where the vehicle is normally driven, the vehicle may accelerate when the turn signal lever is operated in the opposite direction to the overtaking lane (e.g., if the driver normally operates the vehicle in a region where the overtaking lane is to the right but then drives to a region where the overtaking lane is to the left, the vehicle may accelerate when the right turn signal is activated).

C - Example of acceleration

When there are no longer any preceding vehicles driving slower than the set speed

The system accelerates until the set speed is reached. The system then returns to constant speed cruising.

    System Components

    ■ Meter display A - Multi-information display B - Set speed C - Indicators ■ Operation switches A - Vehicle-to-vehicle distance switch B - “+RES” switch C - Cruise control main switch D - Cancel switch E - “-SET” switch WARNING ■Before using dynamic radar cruise control Driving safely is the sole responsibility of the driver...

    Setting the vehicle speed (vehicle-to-vehicle distance control mode)

    1 Press the cruise control main switch to activate the cruise control. Dynamic radar cruise control indicator will come on and a message will be displayed on the multi-information display...
