Toyota Corolla: Seat belts / Fastening and releasing the seat belt

Toyota Corolla. Fastening and releasing the seat belt

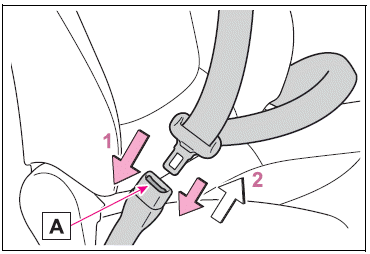

1 To fasten the seat belt, push the plate into the buckle until a click sound is heard.

2 To release the seat belt, press the release button A.

■Emergency locking retractor (ELR)

The retractor will lock the belt during a sudden stop or on impact. It may also lock if you lean forward too quickly. A slow, easy motion will allow the belt to extend so that you can move around fully.

■Automatic locking retractor (ALR)

When a passenger’s shoulder belt is completely extended and then retracted even slightly, the belt is locked in that position and cannot be extended. This feature is used to hold the child restraint system (CRS) firmly. To free the belt again, fully retract the belt and then pull the belt out once more. (®P.48)

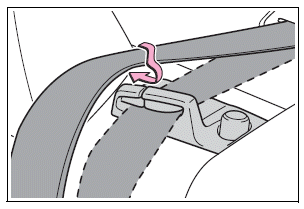

■Rear seat belt

Use the seat belt after passing it through the guide if the seat belt comes free from the guide.

Toyota Corolla. Fastening and releasing the seat belt

    Correct use of the seat belts

    Extend the shoulder belt so that it comes fully over the shoulder, but does not come into contact with the neck or slide off the shoulder. Position the lap belt as low as possible over the hips...

    Adjusting the seat belt shoulder anchor height (front seats)

    1 Push the seat belt shoulder anchor down while pressing the release button A. 2 Push the seat belt shoulder anchor up while pressing the release button A...
