Meter display

■ Locations of gauges and meters

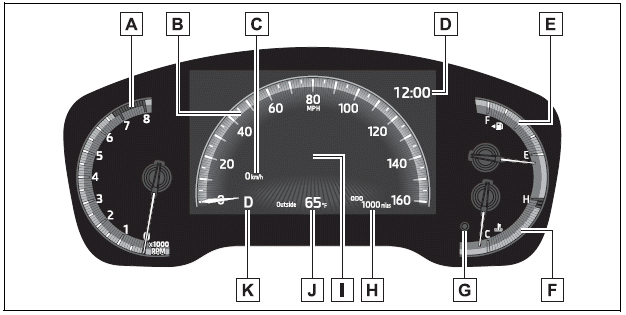

► Analog speedometer

Toyota Corolla. Gauges and meters (7-inch display)

The units of measure may differ depending on the intended destination of the vehicle.

A - Tachometer<> Displays the engine speed in revolutions per minute

B - Speedometer

C - Sub speedometer

D - Clock (®P.98)

E - Fuel gauge<> Displays the quantity of fuel remaining in the tank

F - Engine coolant temperature gauge<> Displays the engine coolant temperature

G - Display change button (®P.97)

H - Odometer and trip meter display (®P.97)

I - Multi-information display<> Presents the driver with a variety of vehicle data (®P.100)<> Displays warning messages if a malfunction occurs (®P.521)

J - Outside temperature<> Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)

K - Shift position indicator

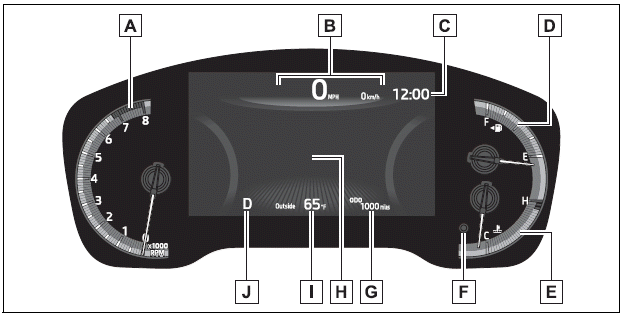

► Digital speedometer

Toyota Corolla. Gauges and meters (7-inch display)

The units of measure may differ depending on the intended destination of the vehicle.

A - Tachometer<> Displays the engine speed in revolutions per minute

B - Speedometer

C - Clock (®P.98)

D - Fuel gauge<> Displays the quantity of fuel remaining in the tank

E - Engine coolant temperature gauge<> Displays the engine coolant temperature

F - Display change button (®P.97)

G - Odometer and trip meter display (®P.97)

H - Multi-information display<> Presents the driver with a variety of vehicle data (®P.100)<> Displays warning messages if a malfunction occurs (®P.521)

I - Outside temperature<> Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)

J - Shift position indicator

■Outside temperature display

  • In the following situations, the correct outside temperature may not be displayed, or the display may take longer than normal to change:

    • When stopped, or driving at low speeds (less than 16 mph [25 km/h])

    • When the outside temperature has changed suddenly (at the entrance/exit of a garage, tunnel, etc.)

  • When “--” or “E” is displayed, the system may be malfunctioning. Take your vehicle to your Toyota dealer.

■Liquid crystal display

■Customization

The gauges and meters can be customized in Toyota Corolla. Gauges and meters (7-inch display) of the multi-information display.

WARNING

■The information display at low temperatures

Allow the interior of the vehicle to warm up before using the liquid crystal information display. At extremely low temperatures, the information display monitor may respond slowly, and display changes may be delayed.

For example, there is a lag between the driver’s shifting and the new gear number appearing on the display. This lag could cause the driver to downshift again, causing rapid and excessive engine braking and possibly an accident resulting in death or injury.

NOTICE

■To prevent damage to the engine and its components

  • Do not let the indicator needle of the tachometer enter the red zone, which indicates the maximum engine speed.
  • The engine may be overheating if the engine coolant temperature gauge is in the red zone (H). In this case, immediately stop the vehicle in a safe place, and check the engine after it has cooled completely.
