Toyota Corolla Manuals

Toyota Corolla: Phone operation (Hands-free system for cellular phones) / Placing a call using the Bluetooth® hands-free system

After a Bluetooth® phone has been registered, a call can be made using the hands-free system. There are several methods by which a call can be made, as described below.

Calling methods on the Bluetooth® phone

1 Display the phone top screen.

2 Select the desired method to call from.

■ Calling methods from phone screen

  • By call history
  • By favorites
  • By contacts
  • By keypad
  • By message

■ Also the following lists are available from each function’s screen

  • By voice command system
  • By home screen

By call history

Up to 30 of the latest call history items (missed, incoming and outgoing) can be selected.

1 Display the phone top screen.

2 Select “History” and select the desired contact.

If the contact which is not registered on the contact list is selected, the name is displayed as “Unknown Contact”. In this case, select the number to make a call properly.

3 Check that the dialing screen is displayed.

  • The icons of call type are displayed.<> Toyota Corolla. Placing a call using the Bluetooth® hands-free system: Missed call<> Toyota Corolla. Placing a call using the Bluetooth® hands-free system: Incoming call<> Toyota Corolla. Placing a call using the Bluetooth® hands-free system: Outgoing call



  • When making a call to the same number continuously, only the most recent call is listed in call history.
  • When a phone number registered in the contact list is received, the name is displayed.
  • Number-withheld calls are also memorized in the system.
  • International phone calls may not be made depending on the type of Bluetooth® phone you have.
  • The list should group together consecutive entries with the same phone number and same call type. For example, two calls from John’s mobile would be displayed as follows: John (2)

By favorites list

Calls can be made using registered contacts which can be selected from a contact list.

1 Display the phone top screen.

2 Select “Favorites” and select the desired contact.

3 Select the desired number.

4 Check that the dialing screen is displayed.

By contacts list

Calls can be made by using contact data which is transferred from a registered cellular phone.

Up to 5000 contacts (maximum of 4 phone numbers, e-mail addresses and addresses per contact) can be registered in the contact list.

1 Display the phone top screen.

2 Select “Contacts” and select the desired contact.

3 Select the desired number.

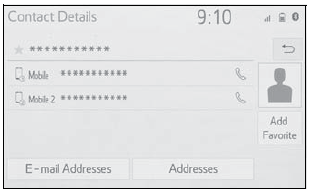

Toyota Corolla. Placing a call using the Bluetooth® hands-free system

“Add Favorite”/“Remove Favorite”: Select to register/remove the contact in the favorites list.

“E-mail Addresses”: Select to disdisplay all registered e-mail addresses for the contact.

“Addresses”: Select to display all registered addresses for the contact.

4 Check that the dialing screen is displayed.

When the contact list is empty

■ For PBAP compatible Bluetooth ® phones when “Automatic Transfer” is set to on

Contacts are transferred automatically.

■ For PBAP compatible Bluetooth ® phones when “Automatic Transfer” is set to off

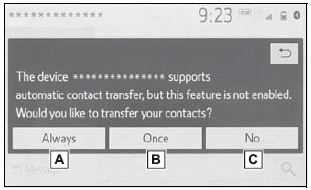

1 Select the desired item.

Toyota Corolla. Placing a call using the Bluetooth® hands-free system

A - Select to always transfer all the contacts from a connected cellular phone automatically.

B - Select to transfer all the contacts from a connected cellular phone only once.

C - Select to cancel transferring.

2 Check that a confirmation screen is displayed when the operation is complete.

■ For PBAP incompatible but OPP compatible Bluetooth ® phones

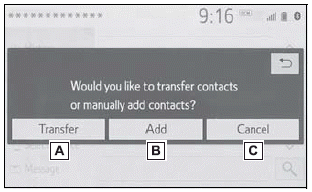

1 Select the desired item.

Toyota Corolla. Placing a call using the Bluetooth® hands-free system

A - Select to transfer the contacts from the connected cellular phone. Transfer the contact data to the system using a Bluetooth ® phone.

B - Select to add a new contact manually. Follow the steps in “Registering a new contact to the contacts list” from step 2.

C - Select to cancel transferring.

By keypad

1 Display the phone top screen.

2 Select “Keypad” and enter the phone number.

3 Select Toyota Corolla. Placing a call using the Bluetooth® hands-free system or press the Toyota Corolla. Placing a call using the Bluetooth® hands-free system switch on the steering wheel.

4 Check that the dialing screen is displayed.

Depending on the type of Bluetooth ® phone being connected, it may be necessary to perform additional steps on the phone.

By home screen

1 Display the home screen.

2 Select the desired contact.

3 Check that the dialing screen is displayed.

■ Registering a new contact

1 Select and hold the screen button to add a contact.

2 Select the desired contact.

3 Select the desired number.

  • If there is no contact in the contacts list, the contacts cannot be registered at the home screen.
  • The contact cannot be registered at the home screen while driving.

    When selling or disposing of the vehicle

    A lot of personal data is registered when the hands-free system is used. When selling or disposing of the vehicle, initialize the data. The following data in the system can be initialized: Contact data Call history data Favorites data Image data All phone settings Message settings Once initialized, the data and settings will be erased...

    Receiving a call using the Bluetooth® hands-free system

    When a call is received, the following screen is displayed with a sound. Incoming calls 1 Select “Answer” or press the switch on the steering wheel to talk on the phone...
