Toyota Corolla: Dynamic radar cruise control / Adjusting the set speed

To change the set speed, press the “+RES” or “-SET” switch until the desired set speed is displayed.

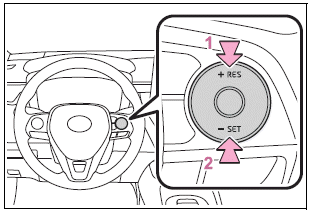

Toyota Corolla. Adjusting the set speed

1 Increases the speed

2 Decreases the speed

Fine adjustment: Press the switch.

Large adjustment: Press and hold the switch to change the speed, and release when the desired speed is reached.

In the vehicle-to-vehicle distance control mode, the set speed will be increased or decreased as follows.

► For the U.S. mainland and Hawaii

Fine adjustment: By 1 mph (1.6 km/h)*1 or 1 km/h (0.6 mph)*2 each time the switch is pressed Large adjustment: Increases or decreases in 1 mph (1.6 km/h)*1 or 1 km/h (0.6 mph)*2 increments for as long as the switch is held

► Except for the U.S. mainland and Hawaii

Fine adjustment: By 1 mph (1.6 km/h)*1 or 1 km/h (0.6 mph)*2 each time the switch is pressed Large adjustment: Increases or decreases in 5 mph (8 km/h)*1 or 5 km/h (3.1 mph)*2 increments for as long as the switch is held In the constant speed control mode (®P.247), the set speed will be increased or decreased as follows:

Fine adjustment: By 1 mph (1.6 km/h)*1 or 1 km/h (0.6 mph)*2 each time the switch is pressed

Large adjustment: The speed will continue to change while the switch is held.

    Setting the vehicle speed (vehicle-to-vehicle distance control mode)

    1 Press the cruise control main switch to activate the cruise control. Dynamic radar cruise control indicator will come on and a message will be displayed on the multi-information display...

    Changing the vehicle- to-vehicle distance (vehicle-to-vehicle distance control mode)

    Pressing the switch changes the vehicle-to-vehicle distance as follows: 1 Long 2 Medium 3 Short The vehicle-to-vehicle distance is set automatically to long mode when the engine switch is turned to ON...
